The CWDM Mux/Demux 4/8/16ch is a compact and efficient passive optical module designed for coarse wavelength division multiplexing (CWDM) applications. It enables the simultaneous transmission of 4, 8, or 16 wavelengths over a single fiber by combining (multiplexing) multiple optical signals at different ITU-standard CWDM wavelengths (ranging from 1270nm to 1610nm) onto one fiber, and separating (demultiplexing) them at the receiving end. Ideal for expanding fiber capacity in cost-sensitive access and enterprise networks, this solution offers low insertion loss, high channel isolation, and excellent thermal stability. With scalable configurations and a rugged, space-saving design, the 4/8/16-channel CWDM Mux/Demux provides a reliable, plug-and-play solution for efficient bandwidth utilization in metro networks, fiber-to-the-x (FTTx), and data center interconnects.
| Item | Parameters | Unit | Specification | |||
|---|---|---|---|---|---|---|
| 1 | Operating Wavelength | nm | 1260~1620 | |||
| 2 | Central Wavelength | nm | 1271,1291,1311, ... 1611 | |||
| 3 | Channel Spacing | nm | 20 | |||
| 4 | Pass Bandwidth | nm | ±6.5 | |||
| 5 | Number of Channels | - | 4 | 8 | 16 | |
| 6 | Insertion Loss | Max. | dB | 1.8 | 2.8 | 3.5 |
| 7 | Polarization Dependent Loss | Max. | dB | 0.15 | 0.15 | 0.2 |
| 8 | Pass band Ripple | Max. | dB | 0.5 | ||
| 9 | Adjacent Channel Isolation | Min. | dB | 30 | ||
| 10 | Non-adjacent Channel Isolation | Min. | dB | 40 | ||
| 11 | Return Loss | Min. | dB | 45 | ||
| 12 | Directivity | Min. | dB | 50 | ||
| 13 | Power Handing | Min. | mW | 500 | ||
| 14 | Operating Temperature | ℃ | -40 ~ +85 | |||
| 15 | Storage Temperature | ℃ | -40 ~ +85 | |||
| 16 | Fiber Type | - | Corning SMF-28 Ultra | |||
| 17 | Fiber Jacket | - | 900μm Loose tube or Customized | |||
| 18 | Fiber Length | - | Customized | |||
| 19 | Connector Type | - | Customized | |||

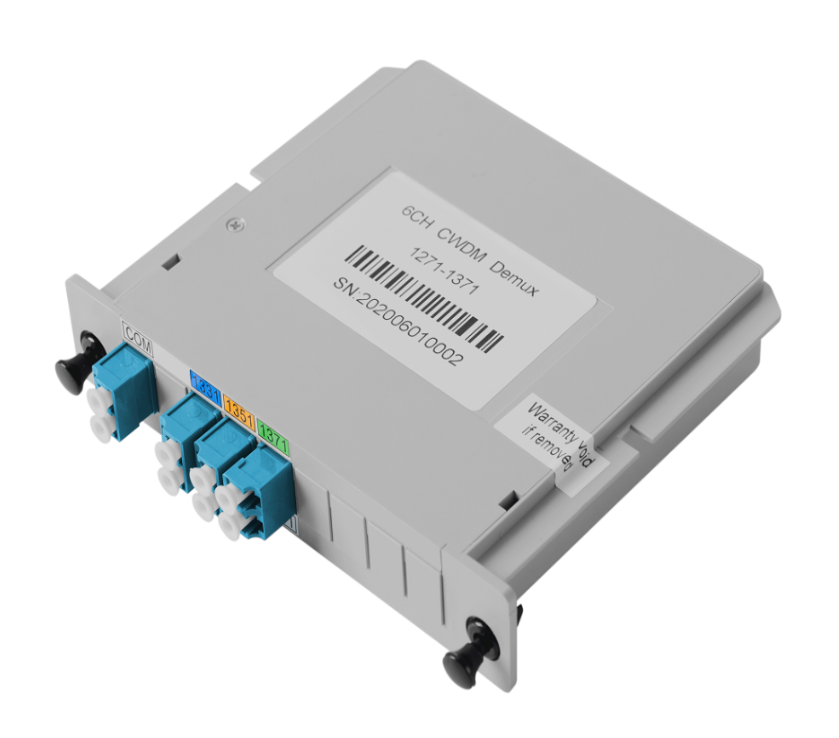

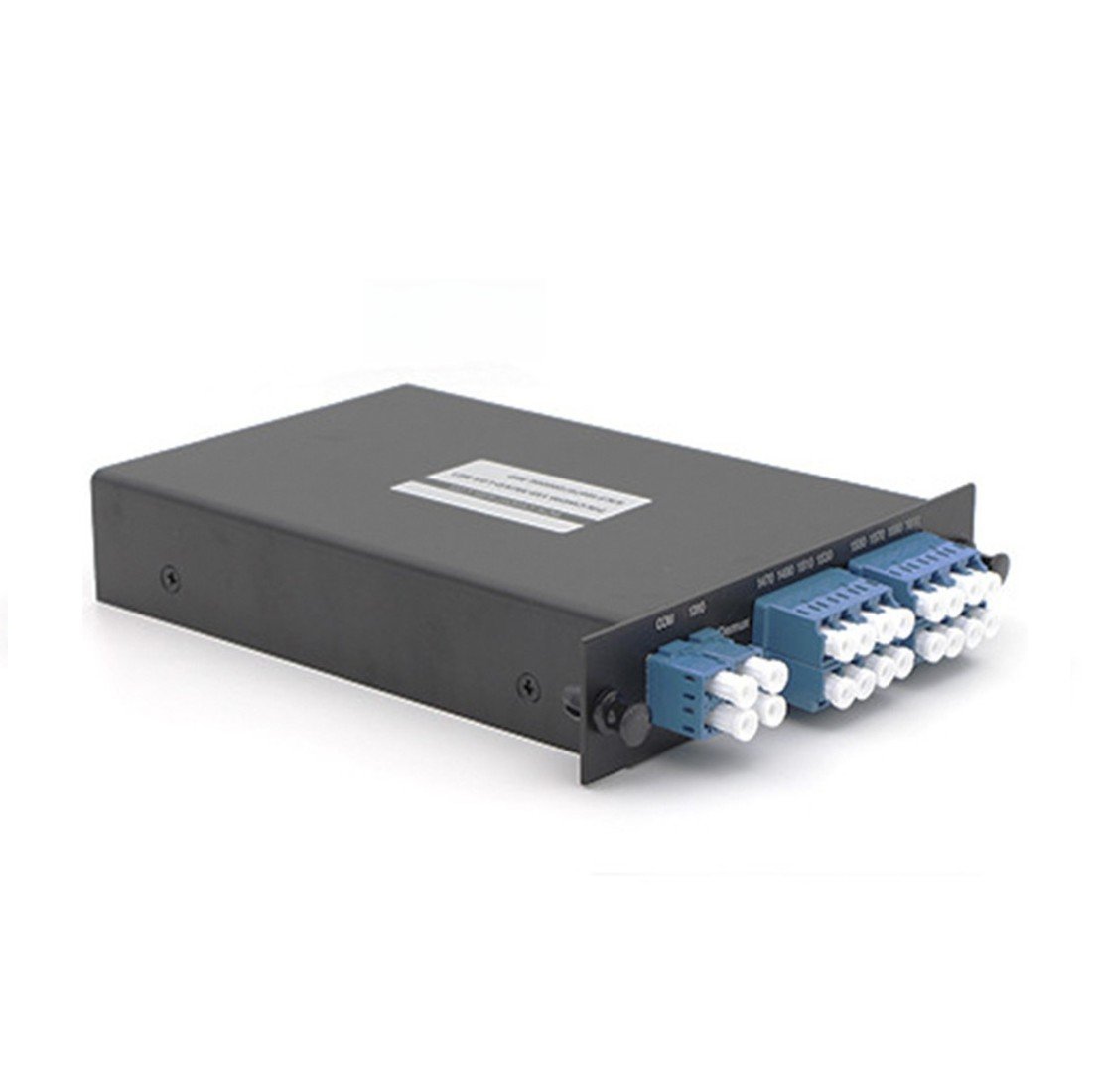

| 20 | Package Size | mm | Cassette / LGX / Rack or Customized | |||
